Product Description
Hiperco 50A exhibit the highest magnetic saturation (2.4 T) of all soft-magnetic alloys. In addition, they exhibit low values of coercive force, meaning demagnetisation can be easily achieved. high DC maximum permeability and low AC core loss .
| Commerical Trade Name |
Vacoflux 50 |
| Material |
Iron-Cobalt Vanadium |
| Standard Specification |
ASTM A801 Alloy 1 |
| Surface Finish |
Ground Surface |
| TOL.Diameter |
±0.076mm |
| TOL.Length |
+5mm |
| Final weight Tolerance |
±10% (Custom-Made Order) |
| Application |
Electric and magnetic applications |
| Country of origin |
China, Xi'an |
Forms of supply

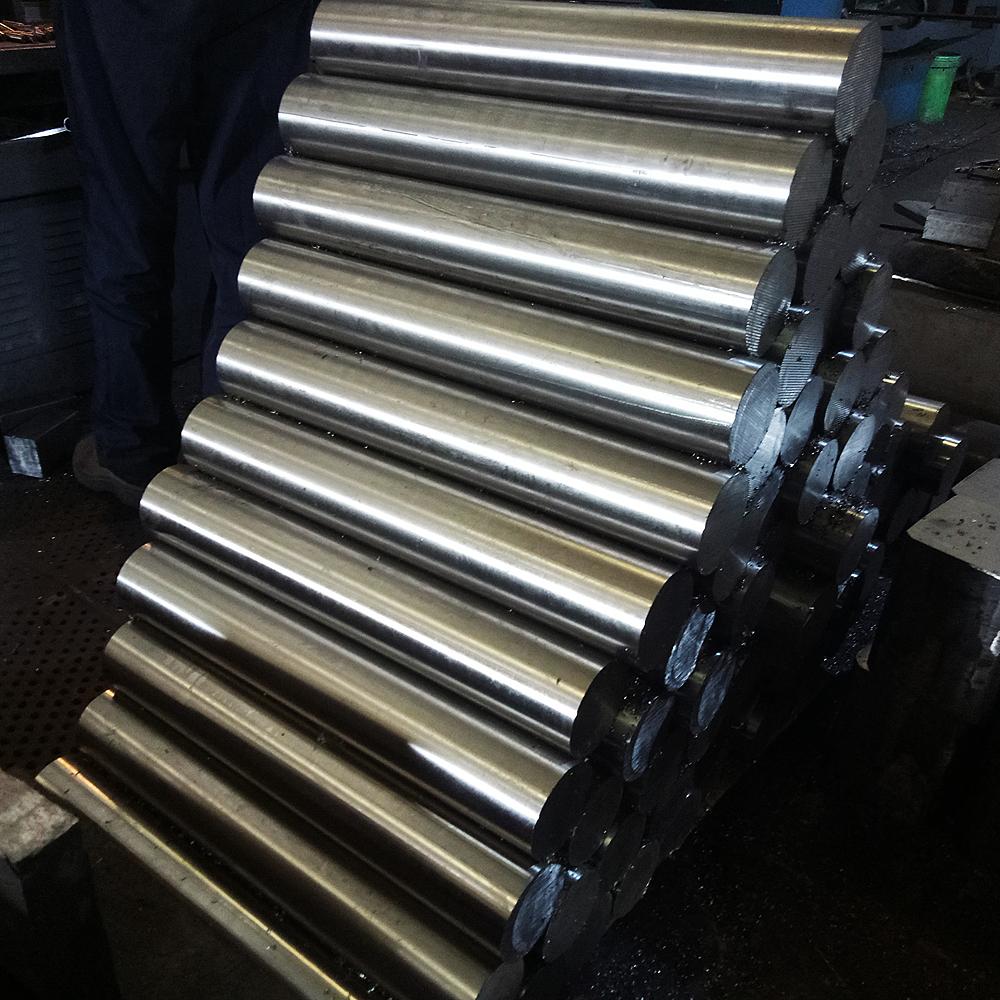

| ROD |
Dia.20 to 280mm,Length3000mm,Max |
Surface Finish: Black, De-scaling & Ground Surface |
| STRIP |
T0.1 to 3.0mm ,width300mm,Max |
Temper Name : Hard / Annealed |
| PLATE |
T3.0 to 40.0mm,Width1000mm,Max |
Surface Finish: Black / Bright |
Tolerance for Rod
| Rod Form |
Black Surface |
De-scaling Surface |
Ground Surface |
| DIA. Tol. |
Dia. Tol. :±1.0mm |
Dia. Tol. :±0.3mm |
Dia. Tol. :±0.1mm |
| Length Tol. |
Length Tol.: +5.0mm |
Length Tol.: +2.0mm |
Length Tol.: +1.0mm |
Product Datasheet
TABLE 1 Chemical Compostition,%
| C |
Mn |
Si |
P |
S |
Cr |
Ni |
Co |
V |
Fe |
| 0.025,Max |
0.15,Max |
0.15,Max |
0.15,Max |
0.010,Max |
0.15,Max |
0.25,Max |
47.5-49.5 |
1.75-2.10 |
Bal. |
TABLE 2 Physical Property
|
Resistivity,
|
0.40 μΩ•m
|
|
Density,g/cm3
|
8.12 g/cm3
|
|
Curie Point,
|
940 °C
|
|
Melting point [T_m_]
|
1427 °C
|
|
Elastic modulus [E]
|
207 GPa
|
|
Hardness, Rockwell B [HRB]
|
20 |
|
Thermal conductivity [λ]
|
29 W/(m·K)
|
|
Elongation [A]
|
7 % ≥
|
TABLE 3 DC Magnetic Properties
| Product Forms |
Magnetic induction at different magnetic field B,≥(T)
|
Coercivity
Hc,≤(A/m)
|
| B800 |
B1600 |
B4000 |
B8000 |
| Cold-Rolling Strip |
2.0 |
2.10 |
2.20 |
2.25 |
100 |
| Forging,Bar |
1.50 |
1.75 |
1.95 |
2.15 |
128 |
Further-Process (Heat Treatment)
Use a non-oxidizing ,non-carburizing atmosphere such as dry hydrogen,argon,or equivalent ,or a Vacuum. Appropriate safety precaution must be taken when working with highly flammable atmospheres.
