Product Description
Vacoflux 50 exhibit the highest magnetic saturation (2.4 T) of all soft-magnetic alloys. In addition, they exhibit low values of coercive force, meaning demagnetisation can be easily achieved. high DC maximum permeability and low AC core loss .
| Commerical Trade Name |
Vacoflux 50 |
| Material |
Iron-Cobalt Vanadium |
| Standard Specification |
ASTM A801 Alloy 1 |
| Surface Finish |
Ground Surface |
| TOL.Diameter |
±0.076mm |
| TOL.Length |
+5mm |
| Final weight Tolerance |
±10% (Custom-Made Order) |
| Application |
Electric and magnetic applications |
| Country of origin |
China, Xi'an |
Product Datasheet
TABLE 1 Chemical Compostition,%
| C |
Mn |
Si |
P |
S |
Cr |
Ni |
Co |
V |
Fe |
| 0.025,Max |
0.15,Max |
0.15,Max |
0.15,Max |
0.010,Max |
0.15,Max |
0.25,Max |
47.5-49.5 |
1.75-2.10 |
Bal. |
TABLE 2 Physical Property
|
Resistivity,
|
0.40 μΩ•m
|
|
Density,g/cm3
|
8.12 g/cm3
|
|
Curie Point,
|
940 °C
|
|
Melting point [T_m_]
|
1427 °C
|
|
Elastic modulus [E]
|
207 GPa
|
|
Hardness, Rockwell B [HRB]
|
20 |
|
Thermal conductivity [λ]
|
29 W/(m·K)
|
|
Elongation [A]
|
7 % ≥
|
TABLE 3 DC Magnetic Properties
| Product Forms |
Magnetic induction at different magnetic field B,≥(T)
|
Coercivity
Hc,≤(A/m)
|
| B800 |
B1600 |
B4000 |
B8000 |
| Cold-Rolling Strip |
2.0 |
2.10 |
2.20 |
2.25 |
100 |
| Forging,Bar |
1.50 |
1.75 |
1.95 |
2.15 |
128 |
Further-Process (Heat Treatment)
Use a non-oxidizing ,non-carburizing atmosphere such as dry hydrogen,argon,or equivalent ,or a Vacuum. Appropriate safety precaution must be taken when working with highly flammable atmospheres.
About Us
XI'AN GANGYAN SPECIAL ALLOY CORPORATION (XAGY)
Specialized in manufacturing Nickel alloys & Cobalt alloys for 25+ years,with a company mission to provide a high quality, reliable source for precision alloys, high temperature alloys and stainless steels in both pilot processing and mass production. We are professionally manufacturing materials with unique features, which are then used in aerospace, military, electronics, marine, petroleum and petrochemical industries. Now our company has formally marketed in China's new stock market, stock No. 836660.
Base on "Quality-oriented, Leading Technology, Continuous Improvement, Customer Satisfaction", we believe XAGY Inc can be your best supplier.
Quality Control
The Quality control team has 18 members, mainly responsible for the analysis and detection of all raw materials and finished products in the factory, analysis and testing items such as physics, chemistry, materials, mechanics, appearance and dimensions ,etc.
Warehouse
Alloy raw materials Like Cobalt, Nickel ,Chromium & ETC.are purchased from large-scale state-owned company, quality assurance, storage capacity up to 200 tons -300 tons, guaranteed enough regular size products in stock . Using ERP system to manage the inventory.product availability and request a QUOTE!
Certificate
ISO9001 Approved Since 2005
Mill Certificate & Rohs report with goods
Exhibition
EMC ShangHai (China)Every Year , Shanghai city
Metal Week (Korea) Every Year, Seoul City
Wire Dusseldorf (Germany)Wire Dusseldorf (Germany)
Important Notice
1. Material Specification
Chemical composition,Physical and Mechanical properties will be engineered according to specific customer requirements.Therefore chemical composition,physical and mechanical properties might be different to values listed in this document.
Information about product characteristics or applicability of materials are shown only for informative purposes.
2. Sample Policy

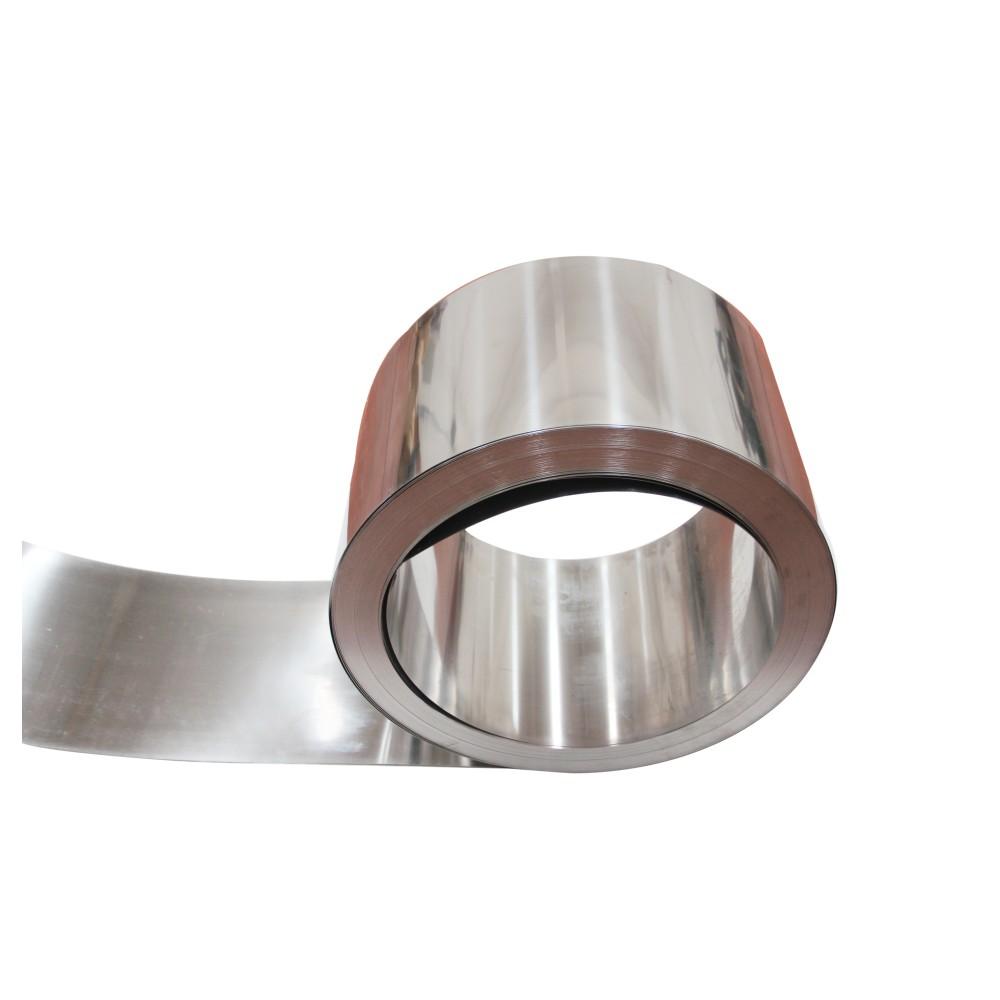

Vacoflux 50 are available in many shapes and dimensions,supplying semi-finished products in forms of Strip,plate & Rods.The samples are big enough (typically about 200mm in length for strip or plate) to get an understanding of the material characteristics, meanwhile custom-made sample order available ! small quantity accepted.
